Sandwich panels have become a cornerstone in modern construction due to their exceptional structural and insulating properties. These composite elements are designed to provide both strength and thermal efficiency, making them ideal for a variety of building applications. Understanding the intricacies of sandwich panels is essential for architects, engineers, and builders aiming to optimize building performance and sustainability. This article delves into the concept of sandwich panels, exploring their composition, types, manufacturing processes, and applications in today's construction industry. By examining the characteristics and advantages of sandwich panel walls, professionals can make informed decisions in their building projects.
Understanding Sandwich Panels

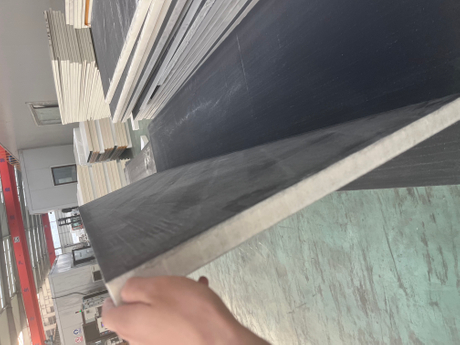

A sandwich panel is a composite element consisting of a lightweight core material sandwiched between two thin, stiff face sheets. The core typically provides insulation and reduces the weight of the panel, while the face sheets offer rigidity and weather resistance. This combination results in a structural element that is both strong and lightweight, optimizing material usage without compromising performance.
The concept of sandwich panels is rooted in the principles of composite materials, where different materials are combined to produce properties that are superior to those of the individual components. In the case of sandwich panels, the synergy between the core and face sheets leads to enhanced mechanical and thermal properties, making them suitable for a wide range of building applications.
Types of Sandwich Panels
Metal Sandwich Panels
Metal sandwich panels are among the most common types used in construction. They typically feature a core made of materials like polyurethane (PU), polyisocyanurate (PIR), mineral wool, or expanded polystyrene (EPS), enclosed between sheets of galvanized steel or aluminum. The use of metals for the face sheets enhances durability, fire resistance, and aesthetic appeal.
These panels are widely used for roofing and wall cladding in industrial, commercial, and residential buildings. Their excellent thermal insulation properties contribute to energy efficiency, while their structural strength allows for larger spans and reduced need for supporting structures.
Structural Insulated Panels (SIPs)
Structural Insulated Panels are high-performance building materials used in floors, walls, and roofs for residential and light commercial buildings. SIPs consist of an insulating foam core sandwiched between two structural facings, typically oriented strand board (OSB). They provide superior insulation and airtightness, leading to significant energy savings.
The use of SIPs can accelerate construction timelines due to their prefabricated nature and ease of installation. They also offer design flexibility and can be customized for various architectural styles and structural requirements.
Composite Sandwich Panels
Composite sandwich panels utilize advanced materials such as fiberglass-reinforced plastic (FRP) or carbon fiber for the face sheets, with cores made from materials like foam, honeycomb structures, or balsa wood. These panels are known for their exceptional strength-to-weight ratios and are often used in aerospace, marine, and specialized construction applications.
The high performance of composite sandwich panels makes them suitable for applications where weight savings are critical without compromising structural integrity. They are also resistant to corrosion and environmental degradation, extending the lifespan of structures in harsh conditions.
Manufacturing Processes
The manufacturing of sandwich panels involves several processes aimed at ensuring optimal bonding between the core and face sheets, as well as achieving the desired material properties.
Continuous Lamination
Continuous lamination is a process used primarily for producing metal sandwich panels. In this method, the core material is injected or placed between the metal facings as they move along a production line. Heat and pressure are applied to bond the layers together continuously. This process is efficient for large-scale production and ensures consistent quality and dimensions.
Vacuum Bagging and Autoclave Curing
For composite sandwich panels, vacuum bagging and autoclave curing are common manufacturing techniques. These methods involve laying up the composite materials and applying vacuum pressure to remove air pockets and excess resin. The assembly is then cured under controlled temperature and pressure conditions in an autoclave. This process results in high-strength, void-free panels suitable for critical structural applications.
Applications in Construction
Sandwich panels are versatile materials used in various aspects of construction due to their beneficial properties.
Building Envelopes
One of the primary uses of sandwich panels is in the creation of building envelopes, including walls and roofs. Their insulating cores contribute to the thermal efficiency of buildings, playing a critical role in energy conservation and comfort. Metal sandwich panels, in particular, are favored for their durability and ease of installation in large-scale industrial and commercial structures.
Cold Storage Facilities
In cold storage and refrigerated facilities, sandwich panels are indispensable due to their excellent insulation properties. They help maintain strict temperature controls essential for preserving perishable goods. Panels with cores made of PIR or PUR foams are commonly used because of their low thermal conductivity and fire-resistant characteristics.
Clean Rooms and Controlled Environments
Sandwich panels are also utilized in constructing clean rooms for pharmaceutical, semiconductor, and biotechnology industries. The panels provide smooth, non-porous surfaces that minimize particle accumulation and are compatible with stringent hygiene standards. Their modular nature allows for flexible design and easy modification of the controlled environments.
Advantages of Using Sandwich Panels
The adoption of sandwich panels in construction offers several advantages that align with modern building requirements.
Thermal Efficiency
Sandwich panels provide superior insulation, reducing heat transfer through building envelopes. This thermal efficiency contributes to reduced energy consumption for heating and cooling, leading to cost savings and environmental benefits. The use of high-performance insulation materials in the core enhances the overall thermal resistance of the panels.
Structural Strength and Weight Reduction
By combining lightweight cores with rigid face sheets, sandwich panels achieve high structural strength while minimizing weight. This characteristic allows for longer spans and greater design flexibility without the need for additional support structures. The reduced weight also simplifies transportation and installation, potentially lowering construction costs.
Fire Resistance
Many sandwich panels are designed with fire-resistant cores, such as mineral wool or PIR, enhancing the safety of buildings. These panels can prevent the spread of fire and provide critical time for occupants to evacuate. Compliance with fire safety regulations is often a significant consideration in the selection of sandwich panels for specific applications.
Acoustic Insulation
Sandwich panels can also offer excellent acoustic insulation, reducing noise transmission between the interior and exterior of a building. This property is particularly beneficial in urban environments or industrial settings where sound attenuation is required to improve occupant comfort and comply with noise regulations.
Design Considerations
When integrating sandwich panels into building designs, several factors must be considered to ensure optimal performance.
Material Selection
Choosing appropriate materials for both the core and face sheets is crucial. Factors such as thermal properties, structural requirements, fire resistance, and environmental conditions influence material selection. For instance, metal sandwich panels with a mineral wool core may be chosen for their fire-resistant properties in a high-risk industrial facility.
Joint Configuration
The design of panel joints affects the overall thermal and structural performance. Proper sealing and fastening methods are essential to prevent thermal bridging, water ingress, and air leakage. Advanced joint designs can enhance the aesthetic appeal and functionality of the façade while maintaining the integrity of the building envelope.
Load-Bearing Capacity
While sandwich panels are structurally efficient, understanding their load-bearing capacity is essential. Panels must be designed to withstand various loads, including wind pressure, snow loads, and seismic forces. Collaboration with structural engineers ensures that the panels meet all safety and performance criteria.
Sustainability and Environmental Impact
As sustainability becomes increasingly important in construction, sandwich panels offer environmental benefits that contribute to green building practices.
Energy Efficiency
The high insulation properties of sandwich panels reduce the energy required for heating and cooling, decreasing greenhouse gas emissions associated with building operation. This energy efficiency is a key component in achieving certifications like LEED and BREEAM.
Material Optimization
Sandwich panels use materials efficiently by combining lightweight cores with thin facings, reducing the overall amount of raw materials needed. Additionally, many panels are manufactured using recyclable materials, and at the end of their lifespan, components can often be recycled, minimizing environmental impact.
Reduced Construction Waste
The prefabrication of sandwich panels allows for precise manufacturing and reduces on-site waste. This efficiency not only lowers environmental impact but also streamlines the construction process, saving time and resources.
Case Studies
Examining real-world applications of sandwich panels highlights their versatility and effectiveness in different construction contexts.
Industrial Warehouses
An industrial warehouse project utilized metal sandwich panels with a PIR core for both walls and roofing. The panels provided the necessary thermal insulation to maintain internal temperatures, crucial for the storage of temperature-sensitive goods. The lightweight nature of the panels allowed for rapid installation, and the fire-resistant properties ensured compliance with safety regulations.
Commercial Office Buildings
In a commercial office development, architects selected composite sandwich panels with FRP facings for the façade. The panels offered a modern aesthetic and contributed to the building's energy efficiency goals. The use of these panels reduced the overall weight of the structure, allowing for innovative design features such as cantilevers and large open spaces.
Residential Housing
A residential project employed SIPs for the construction of energy-efficient homes. The panels facilitated quick assembly and provided superior insulation, resulting in lower energy bills for homeowners. The airtight construction also improved indoor air quality and comfort levels throughout the seasons.
Challenges and Considerations
While sandwich panels offer numerous benefits, certain challenges must be addressed to ensure their effective use.
Moisture Control
Proper moisture management is critical to prevent degradation of the core material and corrosion of metal facings. This requires careful detailing of joints and the incorporation of vapor barriers where necessary. Failure to control moisture can lead to reduced insulation performance and structural issues over time.
Quality Assurance
Consistency in manufacturing is essential to ensure that sandwich panels meet the specified performance criteria. Quality control measures must be in place to monitor adhesion, dimensional accuracy, and material properties. Selecting reputable manufacturers with proven track records can mitigate risks associated with product quality.
Installation Expertise
The installation of sandwich panels requires skilled labor to handle and assemble the panels correctly. Specialized training may be necessary to ensure that the panels are installed according to manufacturer specifications and that all joints and connections are properly sealed.
Future Trends
As construction technology advances, sandwich panels are expected to evolve with new materials and applications.
Advanced Materials
Research into nanomaterials and bio-based materials may lead to sandwich panels with enhanced properties, such as improved insulation, strength, and environmental sustainability. The integration of phase-change materials (PCMs) into cores could provide dynamic thermal regulation, further enhancing energy efficiency.
Smart Panels
The incorporation of sensors and smart technologies into sandwich panels could enable real-time monitoring of structural health, temperature, and other building performance metrics. This innovation would facilitate proactive maintenance and optimize building operation over its lifecycle.
Modular Construction
The trend toward modular and off-site construction methods aligns with the use of sandwich panels. Panels can be integrated into modular units, streamlining construction processes, and improving quality control. This approach can significantly reduce construction timelines and labor costs.
Conclusion
Sandwich panels represent a significant advancement in construction materials, offering a combination of strength, insulation, and versatility. Their role in modern building envelopes contributes to energy efficiency, sustainability, and design flexibility. By understanding the properties and applications of metal sandwich panels, industry professionals can leverage these materials to meet the evolving demands of construction projects. Ongoing innovations promise to expand the capabilities of sandwich panels, reinforcing their position as a critical component in the future of building technology.
