Material Grade: Q235B/Q345B steel Surface Treatment: Painted or hot-dip galvanized Roof and Wall Panels: Sandwich panels or color steel sheets Doors: Sliding or rolling doors (steel or aluminum) Windows: Aluminum alloy with glass or shutters Ventilation: Turbine ventilators on the ridge Gutter: Galvanized steel or stainless steel Bolts: High-strength, hot-dip galvanized

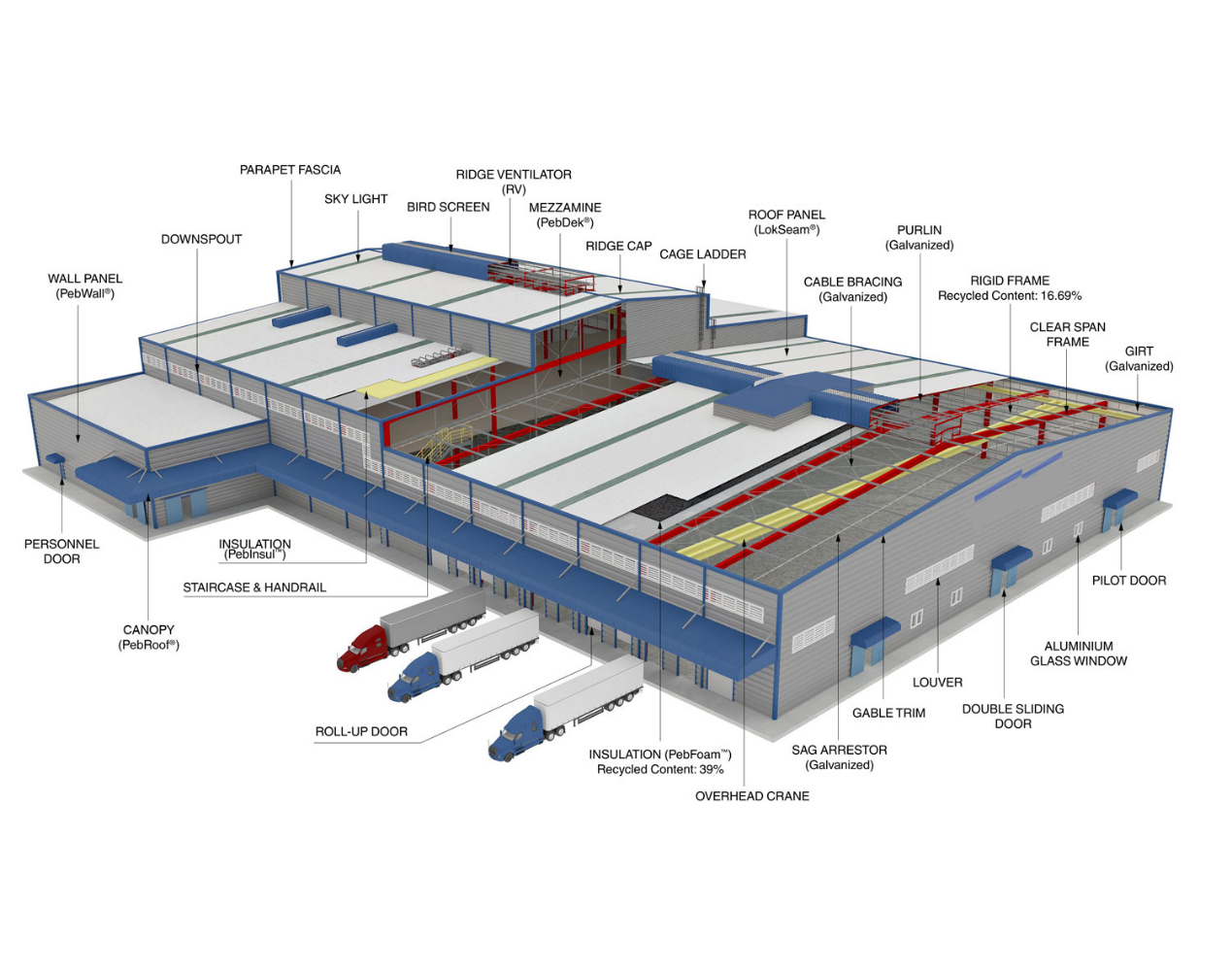

The Prefab Steel Warehouse Storage Structure is a versatile, high-strength solution designed to meet the evolving needs of modern logistics, manufacturing, and storage industries. Engineered with prefabricated steel components, this structure offers rapid installation, exceptional load-bearing capacity, and customizable layouts, making it ideal for large-scale warehouse applications. The modular design allows for easy expansion, while the galvanized steel framework ensures long-term resistance to corrosion, rust, and harsh environmental conditions. Whether for industrial goods, agricultural products, or retail inventory, this storage structure combines structural integrity with operational efficiency, providing a cost-effective and future-proof solution for space optimization.
Features
High-Strength Steel Construction
Utilizes Q355B high-strength steel with a yield strength of 355 MPa, capable of supporting roof loads up to 1.5 kN/m² and wind speeds of 120 km/h (meeting AS/NZS 1170 standards).
Bolted connection system eliminates on-site welding, reducing construction time by 40% while ensuring seismic resistance up to 8 degrees (China GB 50011 code compliance).
Modular & Scalable Design
Pre-cut and pre-punched components allow for flexible column spacing (6-12m standard) and clear-span widths up to 30m, adapting to diverse storage configurations.
Easy vertical expansion with add-on mezzanine floors or mezzanine storage systems, maximizing cubic space utilization by up to 300%.
Weather-Resistant Finish
Double-layer galvanized coating (275g/m² zinc content) provides 25+ years of corrosion resistance in coastal or industrial environments.
Optional polyester paint finish in RAL colors for UV protection and aesthetic customization, reducing maintenance costs by 50%.
Energy-Efficient Design
Roof and wall panels compatible with insulation materials (e.g., rockwool, EPS) to achieve U-values as low as 0.35 W/(m²·K), minimizing heating/cooling costs.
Translucent roof panels available to integrate natural light, reducing reliance on artificial lighting by 40%.
Safety & Compliance
Fire-resistant steel framework (non-combustible, meeting EN 1090-1:2009+A1:2011 execution class EXC2).
Slip-resistant flooring options and emergency exit systems compliant with OSHA and CE standards.
Application
Industrial Warehousing
Heavy-duty storage for machinery, raw materials, and finished goods in manufacturing plants, with customizable racking systems (pallet racks, cantilever racks) integration.
Temperature-controlled warehouses when combined with insulated panels, suitable for pharmaceuticals, electronics, and food storage.
Logistics & Distribution Centers
Cross-docking facilities with wide-span layouts for efficient forklift movement (clear heights up to 15m).
E-commerce fulfillment centers requiring rapid deployment and scalable storage solutions.
Retail & Wholesale Storage
Seasonal inventory storage for retail chains, with modular partitioning for SKU categorization.
Cold storage extensions compatible with refrigeration systems for perishable goods.
Agricultural & Rural Use
Grain storage, equipment sheds, and livestock shelters, resisting moisture, pests, and UV damage in rural environments.
Temporary storage during harvest seasons, with quick disassembly and relocation capabilities.
Why Choose Us
End-to-End Engineering Solutions
In-house team of structural engineers provides customized designs, including 3D modeling, load calculations, and site-specific wind/snow analysis.
Turnkey services cover foundation design, steel fabrication, and installation supervision, ensuring seamless project execution.
Factory Prefabrication Excellence
90% of components manufactured in ISO 9001-certified factories, reducing on-site waste by 80% and ensuring precision tolerances (±2mm for column alignment).
Pre-assembled trusses and purlins arrive labeled for easy identification, minimizing installation errors.
Global Project Experience
Successfully delivered 200+ warehouse projects in 30+ countries, including Amazon fulfillment centers, Toyota parts warehouses, and UN humanitarian storage facilities.
Case studies available showcasing 20% faster project completion compared to traditional concrete structures.
Sustainability Commitment
95% recyclable steel components, contributing to LEED credits for green building certifications.
Energy-efficient designs reduce carbon footprints by up to 30% compared to conventional warehouses.
Comprehensive After-Sales Support
24/7 remote technical support for structural issues or expansion inquiries.
10-year warranty on steel framework and a 5-year warranty on coating integrity, with annual maintenance inspection packages available.
Overview
The Prefab Steel Warehouse Storage Structure is a versatile, high-strength solution designed to meet the evolving needs of modern logistics, manufacturing, and storage industries. Engineered with prefabricated steel components, this structure offers rapid installation, exceptional load-bearing capacity, and customizable layouts, making it ideal for large-scale warehouse applications. The modular design allows for easy expansion, while the galvanized steel framework ensures long-term resistance to corrosion, rust, and harsh environmental conditions. Whether for industrial goods, agricultural products, or retail inventory, this storage structure combines structural integrity with operational efficiency, providing a cost-effective and future-proof solution for space optimization.
Features
High-Strength Steel Construction
Utilizes Q355B high-strength steel with a yield strength of 355 MPa, capable of supporting roof loads up to 1.5 kN/m² and wind speeds of 120 km/h (meeting AS/NZS 1170 standards).
Bolted connection system eliminates on-site welding, reducing construction time by 40% while ensuring seismic resistance up to 8 degrees (China GB 50011 code compliance).
Modular & Scalable Design
Pre-cut and pre-punched components allow for flexible column spacing (6-12m standard) and clear-span widths up to 30m, adapting to diverse storage configurations.
Easy vertical expansion with add-on mezzanine floors or mezzanine storage systems, maximizing cubic space utilization by up to 300%.
Weather-Resistant Finish
Double-layer galvanized coating (275g/m² zinc content) provides 25+ years of corrosion resistance in coastal or industrial environments.
Optional polyester paint finish in RAL colors for UV protection and aesthetic customization, reducing maintenance costs by 50%.
Energy-Efficient Design
Roof and wall panels compatible with insulation materials (e.g., rockwool, EPS) to achieve U-values as low as 0.35 W/(m²·K), minimizing heating/cooling costs.
Translucent roof panels available to integrate natural light, reducing reliance on artificial lighting by 40%.
Safety & Compliance
Fire-resistant steel framework (non-combustible, meeting EN 1090-1:2009+A1:2011 execution class EXC2).
Slip-resistant flooring options and emergency exit systems compliant with OSHA and CE standards.
Application
Industrial Warehousing
Heavy-duty storage for machinery, raw materials, and finished goods in manufacturing plants, with customizable racking systems (pallet racks, cantilever racks) integration.
Temperature-controlled warehouses when combined with insulated panels, suitable for pharmaceuticals, electronics, and food storage.
Logistics & Distribution Centers
Cross-docking facilities with wide-span layouts for efficient forklift movement (clear heights up to 15m).
E-commerce fulfillment centers requiring rapid deployment and scalable storage solutions.
Retail & Wholesale Storage
Seasonal inventory storage for retail chains, with modular partitioning for SKU categorization.
Cold storage extensions compatible with refrigeration systems for perishable goods.
Agricultural & Rural Use
Grain storage, equipment sheds, and livestock shelters, resisting moisture, pests, and UV damage in rural environments.
Temporary storage during harvest seasons, with quick disassembly and relocation capabilities.
Why Choose Us
End-to-End Engineering Solutions
In-house team of structural engineers provides customized designs, including 3D modeling, load calculations, and site-specific wind/snow analysis.
Turnkey services cover foundation design, steel fabrication, and installation supervision, ensuring seamless project execution.
Factory Prefabrication Excellence
90% of components manufactured in ISO 9001-certified factories, reducing on-site waste by 80% and ensuring precision tolerances (±2mm for column alignment).
Pre-assembled trusses and purlins arrive labeled for easy identification, minimizing installation errors.
Global Project Experience
Successfully delivered 200+ warehouse projects in 30+ countries, including Amazon fulfillment centers, Toyota parts warehouses, and UN humanitarian storage facilities.
Case studies available showcasing 20% faster project completion compared to traditional concrete structures.
Sustainability Commitment
95% recyclable steel components, contributing to LEED credits for green building certifications.
Energy-efficient designs reduce carbon footprints by up to 30% compared to conventional warehouses.
Comprehensive After-Sales Support
24/7 remote technical support for structural issues or expansion inquiries.
10-year warranty on steel framework and a 5-year warranty on coating integrity, with annual maintenance inspection packages available.
